These three diverse components are efficiently organized to rest within a common structural system and facade design. The parking system is a double helix, which requires a width of 128 feet. The hotel’s atrium, open corridors and suite depth require 44 feet on each side. The office lease span requirement is 45 feet “clear” from the core to the exterior wall.

The planning module is 3’4″ and is used vertically and horizontally. Parking and hotel floor-to-floor heights require three modules (10’0″), and the office floor requires four modules (13’4″). The hotel suite room widths require four modules. Office planning is based on workstations of two and one half modules (8′ 4″): office type A requires three modules and office type B requires four modules.

Columns in the upper office portion of the building are located on forty-foot centers along the perimeter, which correspond to three hotel room widths. The columns increase in number as the structure is “taken down” through the hotel and garage perimeter walls.

Special conference and ballroom space is provided at the sky lobby floor located below the Hotel Atrium and serviced by Embassy Suites.

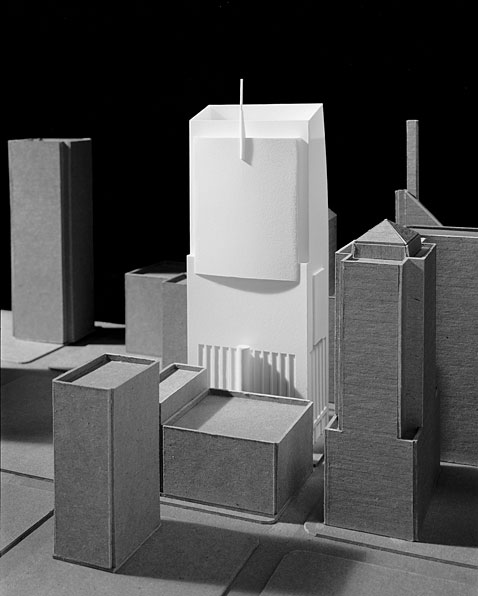

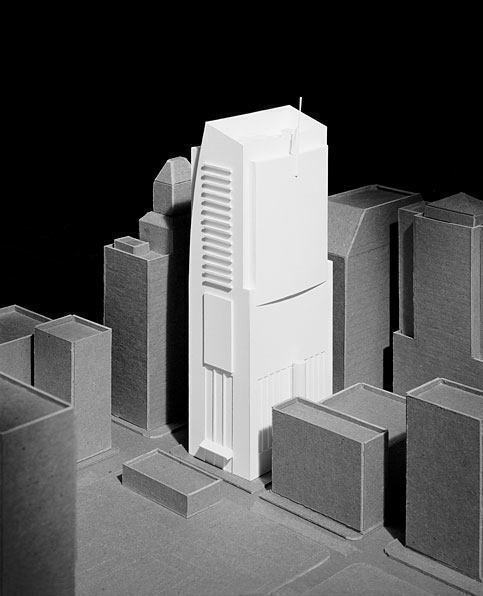

The building massing is contextually responsive while retaining a unique “signature” visual character, which will provide a bold iconographic landmark for Baltimore.
